YC-C
Compression
Machine and die springs. Ground ends when the drawing asks. Open or closed coils.
HaYotzrim 14 · Petah Tikva

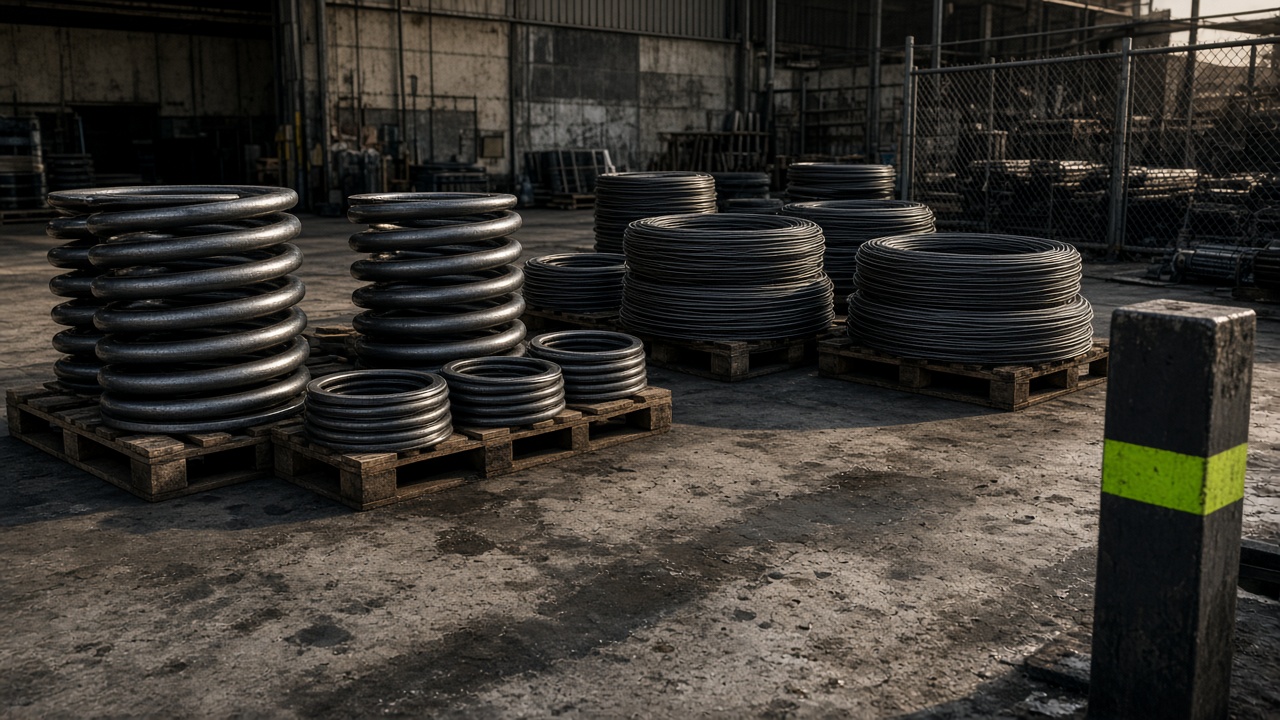

Industrial springsfrom the yard.
Compression, extension, and torsion springs, plus wire forms. Die springs and machine springs to drawing. Wire from 0.3 mm to 16 mm.
YC-COMP-01Kinetic · NTS · Petah Tikva
- Wire
- 0.3–16 mm
- Samples
- Close 11:00
- Petah Tikva
- 07:00 IL
- Friday
- 07:00–12:00
- Saturday
- Closed
- Gate
- Sun–Thu
X 200 Y 240
- HaYotzrim 14 · Petah Tikva
- Wire 0.3–16 mm
- Same-day samples close 11:00
- Sun–Thu 07:00–16:30
- Friday 07:00–12:00
- Die springs to drawing
- No prices · reply with a note
- Desk 03-924-7710
01 / COIL
Four geometries the press actually runs.
The catalog spring is a starting point. Ends, direction of wind, and free length come off the drawing or the sample.
YC-E
Extension
Hooks, loops, and German hooks formed on the same wire. Initial tension is written, not guessed.
YC-T
Torsion
Legs bent to the angle on the sheet. Double torsion when the load sits on both sides.
YC-W
Wire forms
Clips, pins, and the odd shape that is not a spring and still has to sit in the machine.
S-01
0.3mm
Finest wire on the rack.
S-02
16mm
Heaviest section we coil.
S-03
11:00
Same-day sample close.
S-04
3types
Compression, extension, torsion.
S-05
4uses
Machine, die, door, field.
S-06
Frinoon
Friday gate closes 12:00.
02 / SKETCH
A rate sketch. Not a quote.
Wire d, mean diameter D, and active coils N. The formula is k ≈ G d⁴ / (8 D³ N). The yard still replies with a note.
Spring steel sketch
G held at 80 000 N/mm². Ends, set, and free length are not in this number.
- Sketch rate k
- —
- Shear G
- 80 kN/mm²
Sketch rate k ≈ G d⁴ / (8 D³ N). Not a quote.
03 / USE
What the spring is doing in the machine.
Pick the job. The desk still needs a drawing or a sample — this is a shop guide, not a catalog.
Machine springs
OEM replacements and the spring the catalog no longer lists. Rate and solid height come off the drawing.
Typical on the floor
- Return springs on slides and guards
- Clutches, brakes, and indexer packs
- Odd lots when the machine is already down
Send the yard
- Drawing or a measurable sample
- Wire, mean diameter, free length
- How many, and when the line needs them
Same-day samples close at 11:00.
Send the drawingDie springs
Press tools and dies to drawing. Colour codes from a catalog are a hint, not a substitute for load.
Typical on the floor
- Die springs to the tool drawing
- Stripper and pad packs
- Heavy section up to 16 mm wire
Send the yard
- Hole, rod, free length, load
- Duty: light, medium, heavy
- How the ends sit in the tool
No prices on the site. Reply with a note.
Send the drawingGarage door
Torsion and extension door springs. Wind direction and wire size from the broken spring, not from a photograph of the door.
Typical on the floor
- Torsion with cones to match the shaft
- Extension with clips or loops
- One-for-one replacements from a sample
Send the yard
- Wire, inside diameter, length
- Left or right wind
- Door weight if you have it
Bring the broken spring if it will travel.
Send the drawingAgriculture
Implement tines, trip springs, and the heavy extension that lives in dust. Wire up to 16 mm.
Typical on the floor
- Cultivator and seeder trip springs
- Hitch and gate extensions
- Forms that are not a catalog number
Send the yard
- A sample, even a rusted one
- Hook shape and free length
- How many for the season
Friday gate 07:00–12:00.
Send the drawing
01
Drawing OR SAMPLE
A sheet, a broken spring, or both. Wire, mean diameter, and free length written before the press moves.
Desk
02

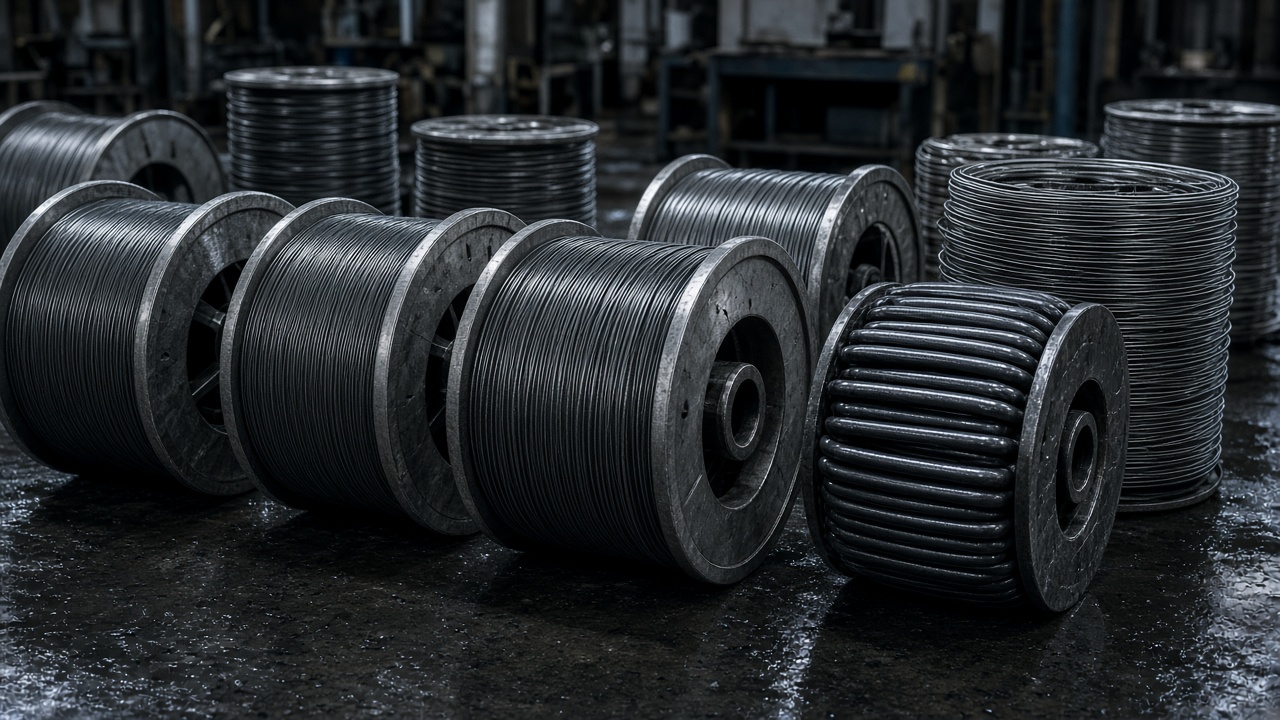

Wire 0.3–16 MM
From the rack when the diameter is here. Ordered against the job when it is not.
Spool
03

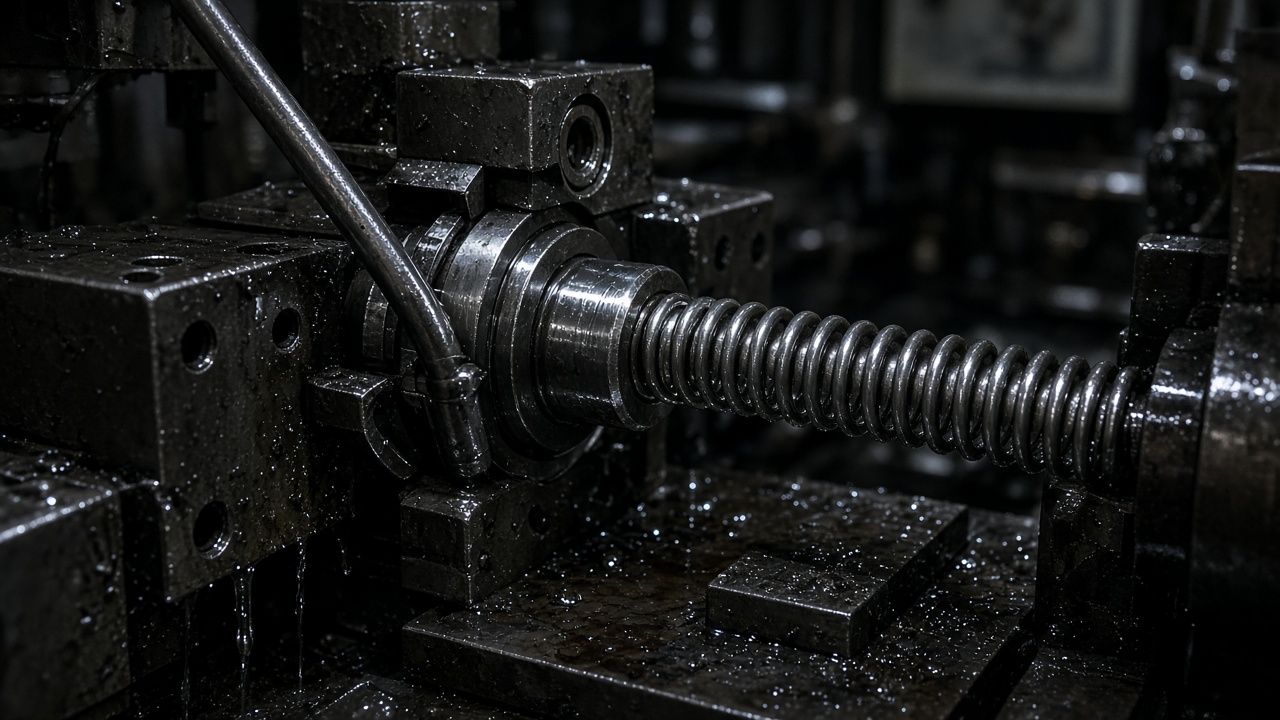

Coil PRESS
Compression, extension, or torsion. Direction of wind as marked. Wire forms on the bench.
Arbor
04
Ends GRIND · HOOK
Ground, closed, loops, or legs. The end is part of the spring, not a second thought.
Bench
05
Set and check LOAD
Set when the drawing asks. A load check against the note, not against a catalog colour.
Check
06
Out GATE
HaYotzrim 14. The yard replies with a note. There are no prices on this site.
Out
What the yard will answer
A drawing is enough to start.
Shop notes · not a price list
| Item | Yard note |
|---|---|
| Wire | 0.3–16 mm |
| Same-day samples | Close at 11:00 |
| Die / machine | To drawing |
| Hours | Sun–Thu 07:00–16:30 |
| Friday | 07:00–12:00 |
| Saturday | Closed |
05 / NOTES
Questions the desk hears.
Sunday–Thursday 07:00–16:30. Friday 07:00–12:00. Call 03-924-7710.
Q.01 Do you list prices?
No. Send a drawing or a sample. The yard replies with a note. The rate sketch on this site is not a quote.
Q.02 Can I have a sample today?
Same-day samples close at 11:00. After that the press is on the jobs already on the floor.
Q.03 What wire do you keep?
From 0.3 mm to 16 mm. Die springs and machine springs to drawing. Heavier or odd alloys are ordered against the job.
Q.04 I only have a broken spring.
Bring it. Wire, mean diameter, and ends can be taken from the sample. A photograph of a rusty coil is not enough on its own.
Q.05 Garage door springs?
Yes — torsion and extension. Wind direction and wire from the broken spring. We do not size a door from a photo of the panel.
Q.06 Where is the gate?
HaYotzrim 14, Petah Tikva. Closed Saturday. Friday until 12:00.
If the press is waiting on a spring.
Same-day samples close at 11:00 on working days.
06 / DESK
Send the drawing.
The form opens your email. This site stores nothing. No prices — reply with a note.
